100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting

  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
Herkunftsort Guangdong, China
Markenname Miracle Bean
Zertifizierung CE RoHs
Modellnummer XH-G10021P24 (RGBW) -D1A
Min Bestellmenge 100 Stück
Preis negotiate
Verpackung Informationen Karton
Lieferzeit 3-15 Tage
Zahlungsbedingungen T/T, Western Union, L/C
Versorgungsmaterial-Fähigkeit 50000 Stück pro Monat
Produktdetails
Artikel DMX512 adressierbare LED-Punktlichtquelle Modell XH-G10021P24 (RGBW) -D1A
Größe 100mm LED-Lichtquelle SMD3535
LED Chip Qty 21pcs Leistung Maximal 5,8 W
Eingangsspannung DC 24V Kontrollprotokoll DMX512
Farbe RGBW Abstrahlwinkel 160 °
IP-Bewertung IP67 Kabellänge 120 mm Standard (anpassbar)
Arbeitstemperatur -20 ℃ ~+60 ℃ Lebensspanne 50000 Std
Garantie 2 Jahre Installationstyp Oberfläche montiert
Anwendung Außenbeleuchtung für Gebäudefassaden
Hervorheben

DMX512 Addressable RGBW IC Control

,

1.5W SMD3535 Point Light Source

,

30mm IP67 Outdoor LED Pixel
Hinterlass eine Nachricht
Produkt-Beschreibung
100mm IP67 DMX512 Addressable RGBW LED Point Light SMD3535 24V for Building Facade Outdoor Lighting

Professional DMX512 addressable LED point light source featuring SMD3535+IC chipset with 4 high-brightness LED beads, 16.7M RGBW colors, and 65536-level grey scale for ultra-smooth color transitions at 30fps. IP67 waterproof rated with UL certified 2220 copper wire for permanent outdoor architectural lighting installations.

Technical Specifications
Model XH-G10021P24(RGBW)-D1a
Size 100mm
LED Light Source SMD3535
LED Chip Quantity 21pcs
Rated Power Max 5.8W
Input Voltage DC 24V
Control Protocol DMX512
Pixel Per Channel 5
Color RGBW
Beam Angle 160°
IP Rating IP67
Working Temperature -20℃ ~ +60℃
Wire Length 120mm Standard (Customizable)
Life Span 50000 Hrs
Warranty 2 Years
Key Features
  • RGBW Colors: 65536-level grey scale per channel delivers cinematic-quality color depth and smooth transitions
  • SMD3535+IC Integrated Chipset: Built-in driver IC reduces external component count and simplifies wiring
  • 21 High-Brightness LED Beads: Delivers max 5.8W output with excellent luminance for outdoor visibility
  • IP67 Waterproof Rating: Fully sealed for permanent outdoor installation in rain, snow, and extreme environments
  • Wide Operating Range: Functions reliably from -20℃ to +60℃ for global deployment
  • 120mm Standard Wire with Customization: Default 120mm wire length adaptable to project-specific requirements
Applications

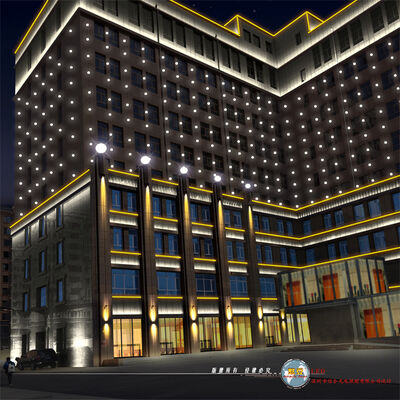

  • Building Facade Lighting and Media Facades
  • Bridge and Landmark Architectural Illumination
  • Commercial Plaza and Shopping Mall Decorative Lighting
  • Theme Park and Entertainment Venue Dynamic Displays
  • Stage Backdrop and Large-Scale Grid Screens
  • Outdoor Bar Screens and Mesh Display Systems
Our Services
  • Guaranteed 24-hour response time
  • Comprehensive English communication for all inquiries
  • OEM & ODM services available
  • Distributorship programs for proprietary designs and select standard models
  • Structured protection of sales territories, design IP, and confidential data
  • Lifelong technical support commitment
  • Optimized delivery framework: Stock models dispatched immediately, samples shipped upon payment, bulk orders fulfilled within 7 business days, custom projects within 15 business days
Trade Details
Payment Methods T/T, Western Union, Paypal, L/C
Port Shenzhen
Delivery Time 3-5 days for stock models; 7 working days for bulk orders; 15 working days for OEM/ODM orders
Packing Packed in carton
Shipping By air, by sea, express are supported
